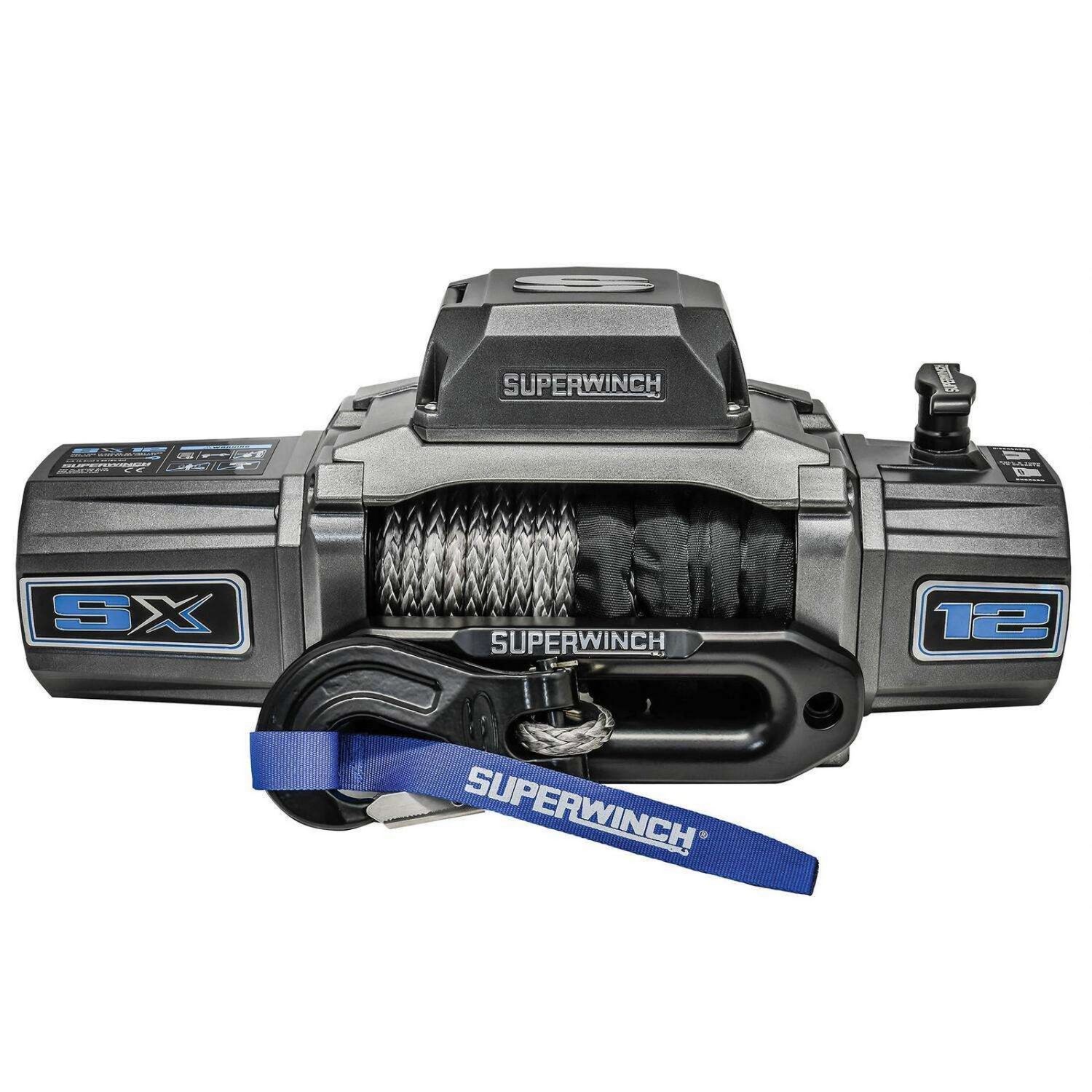

Super Winch SX12SR 12000 lbs with Synthetic Rope

C$1,449.99
In stock
Product Details

SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Produces 12,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and your choice of wire or synthetic rope this winch has it all.

  • 12,000 lbs. capacity
  • 6.0 HP sealed motor
  • Relocatable die-cast aluminum control box
  • 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight/wireless remote on synthetic
  • Ergonomic pull-and turn clutch handle
  • 3-stage planetary gearing with 231:1 ratio
  • Patented drum light
  • Drum diameter measures 2.5 in.
  • Heavy duty clevis winch hook
  • Aluminum hawse fairlead (synthetic rope)
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
  • Clockable gearbox

Specifications

Specifications

Brake System 100% Full-load holding automatic mechanical brake
Clutch Pull and turn clutch handle
Color Graphite
Control Box Relocatable Die-Cast Aluminum
Dimensions 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Drum Durable fully welded steel drum
EN Compliant No
Fairlead Stainless Steel 4-Way Roller
Finish Powder Coated
Finish/Color Graphite
Gear Ratio 231:1
Gear System 3-stage planetary
Package Height 13 in.
IP Rating IP68 Waterproof and Dustproof
Package Length 12 in.
Line Speed 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
Material Steel
Motor 6.0 HP, 12V DC
Mounting Bolt Pattern 10in x 4.5in (254mm x 114.3mm)
Rated Single Line Pull (Lbs) 12000
Remote Control 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Remote Type Wire
Rope Length 3/8 in x 85 ft (9.5mm x 26m)
Rope Material Steel Wire
Task Lighting Patented drum light
Warranty Limited Lifetime Mechanical/7 Year Limited Electrical
Package Weight 90 lbs.
Winch Hook Heavy-Duty, Clevis Pinned Latched
Winch Model SX Series
