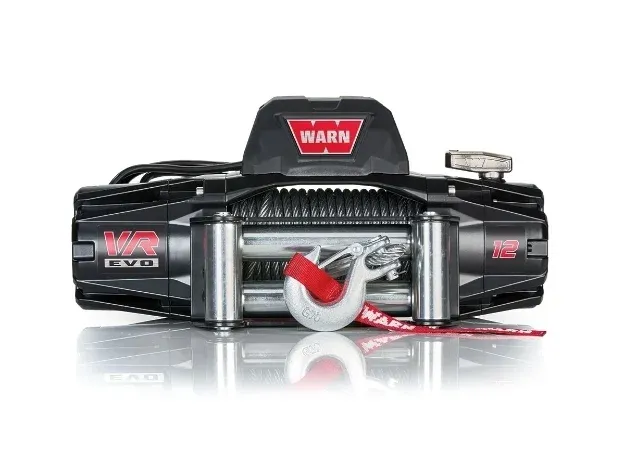

Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a corded remote with 11.5' (3.5m) lead. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches Warn has ever made.
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• 2-in-1 wired and wireless remote
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Type | Electric |
Recommended Use | Vehicle Recovery |
Mounting Location | Vehicle Mounted |
Voltage | 12 Volt DC |
Electrical Control Type | Albright Contactor |
Motor Type | Series Wound |
Drive Gear Type | 3-Stage Planetary |
Gear Reduction Ratio | 234:1 |
Free Spooling | Yes |
Brake Type | Spring |
Line Diameter (IN) | 3/8 Inch |
Line Length (FT) | 85 |
Line Material | Steel |
Fairlead Type | Roller |
Remote Type | corded remote with 11.5' (3.5m) lead |
Mounting Hole Quantity | 4 |
Mounting Pattern Length (IN) | 10 Inch |
Mounting Pattern Width (IN) | 4-1/2 Inch |
Includes Mounting Hardware | Yes |
Color | Black |
Drum Material | Steel |
Max Line Pull/ Line Speed | 12,000 pounds / 4.0 feet per minute |
Max Amp Draw/ Line Pull | 396 Amps / 12,000 pounds |
